■ 재질 : N51A, ASTM Type I Class B Glass
■ Samples are run under Room Temp with No Thermal Gradient
■ Reaction Monitoring Scouting for a New Compound 및 Routine NMR용
■ Auto-sampling 및 High-throughput NMR 튜브
■ Length : 7'' (178 mm)
■ Chemglass / Norell

•

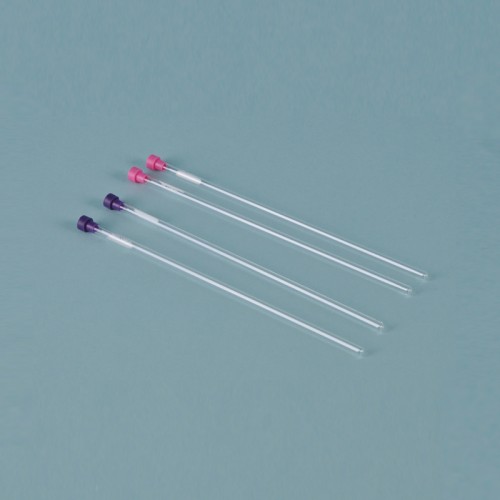

  • Precision NMR Tube

  Cat. No.	Model	MHz	od (mm)	Concentricity	Camber
  T16-132-336	C-505-P-7	200	4.97±0.030	±0.010 mm	±0.040mm
  T16-132-343	C-XR-55-7	300	4.97±0.025		±0.038mm
  T16-132-350	C-507-HP-7	400	4.97±0.013	±0.007 mm	±0.019mm
  T16-132-357	C-508-UP-7	500	4.97±0.013	±0.005 mm	±0.013mm
  T16-132-364	C-509-UP-7	600	4.97±0.006	±0.004 mm	±0.006mm

  • High-throughput NMR Tube

  Cat. No.	Model	MHz	od (mm)	Concentricity	Camber
  T16-132-322	C-ST500-7	HTPLUS	4.97±0.070	±0.025mm	±0.075mm
  T16-132-329	C-502-7	HT	4.97±0.050	±0.020mm	±0.070mm

  • ● For Near Room Temp. Analysis of Routine Samples Exposed only to Slight Thermal Gradient
